DPP High Shear Mixer

The DPP High Shear Mixer represents cutting-edge mixing technology, specifically engineered for superior solid particle processing and size reduction. This industrial-grade High Shear Mixer delivers exceptional particle size reduction and homogenization performance through its innovative multi-stage processing system, making it the ideal solution for challenging solid-liquid processing applications.

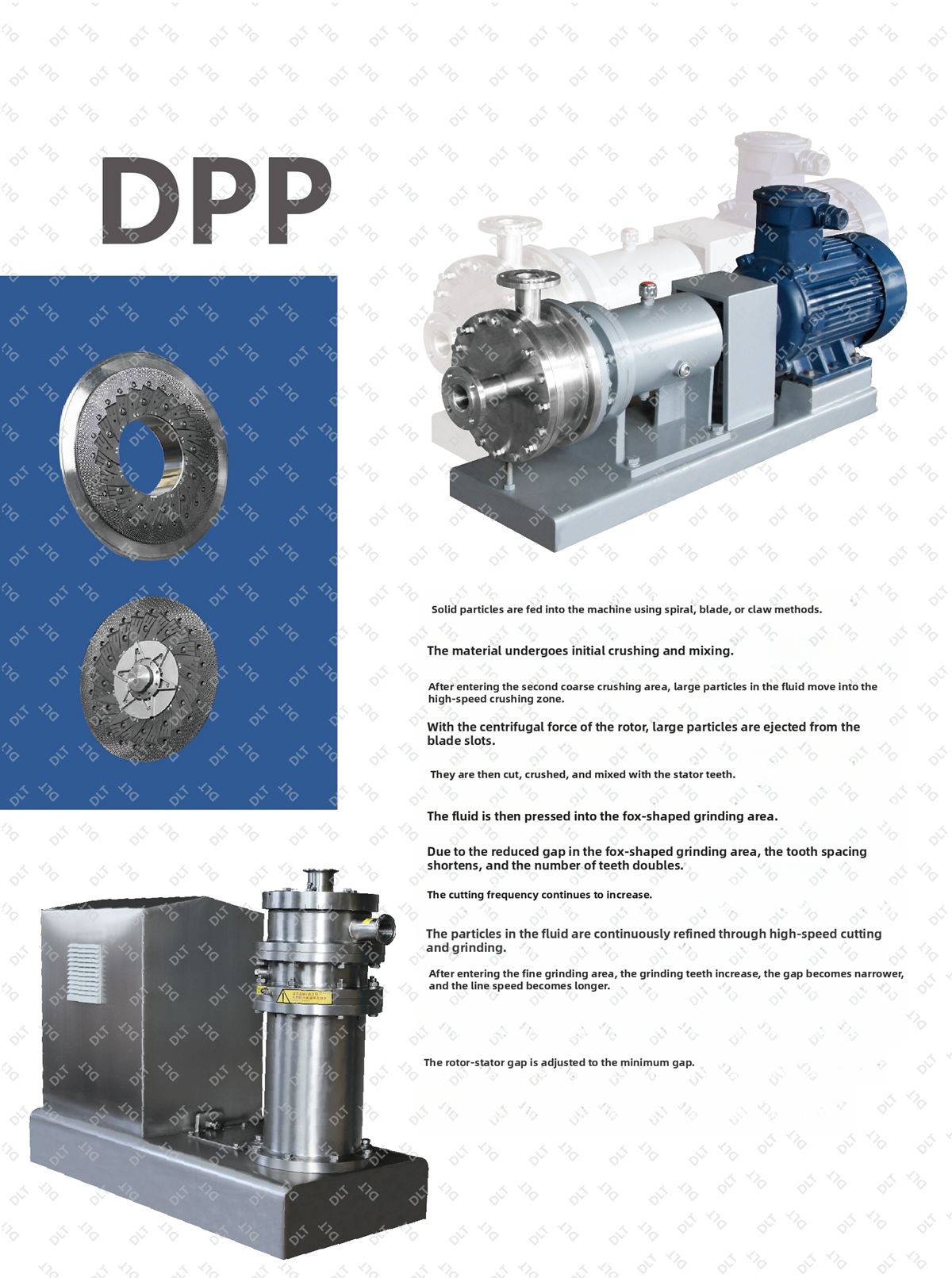

Advanced Multi-Stage Processing Technology

Primary Processing Stage

• Versatile Feeding Systems: Screw/blade/claw-type feed mechanisms for initial particle reduction

• Pre-Mixing Capability: Initial blending and size reduction before main processing

• Efficient Material Handling: Smooth transition from feeding to primary processing

Secondary Coarse Grinding Zone

• Tapered Groove Design: Large particles enter high-speed grinding area through specially designed grooves

• High-Speed Centrifugal Action: Rotor forces throw particles outward for effective impact processing

• Combined Mechanical Action: Simultaneous cutting, crushing, and mixing operations

• Progressive Size Reduction: Continuous particle breakdown through mechanical interaction

Arc Grinding Section

• Gradual Gap Reduction: Precisely decreasing clearance for intensified mechanical action

• Increased Tooth Density: Double the number of teeth for enhanced processing frequency

• Optimized Geometry: Curved design ensures complete material treatment

• High-Frequency Shear: Progressively intensifying mechanical action for superior results

Precision Finishing Zone

• Maximum Tooth Concentration: Highest number of grinding teeth for final refinement

• Minimal Clearance Setting: Smallest possible rotor-stator gap for ultimate precision

• Extended Linear Velocity: Optimized speed parameters for finest particle reduction

• Ultimate Refinement: Final processing stage achieving sub-micron particle sizes

Key Features & Benefits

• Multi-Stage Processing: Complete particle reduction from coarse to fine grinding

• Superior Size Reduction: Achieves micron and sub-micron particle sizes

• High Efficiency Operation: Optimized design reduces processing time and energy consumption

• Versatile Feeding Options: Multiple intake systems for various material types

• Precise Gap Adjustment: Micro-adjustable rotor-stator clearance for different applications

• Continuous Operation: Suitable for uninterrupted industrial production

• Robust Construction: Durable materials withstand abrasive processing conditions

Technical Advantages

The DPP High Shear Mixer delivers exceptional operational benefits:

• Complete Particle Processing: Handles everything from initial size reduction to final refinement

• Improved Product Quality: Uniform particle size distribution enhances final product characteristics

• Reduced Operating Costs: Lower energy consumption and maintenance requirements

• Flexible Application: Suitable for various solid-liquid processing requirements

• Scalable Performance: Consistent results from laboratory to full production scale

• Easy Maintenance: Accessible design simplifies cleaning and service procedures

Industrial Applications

• Pharmaceutical solid-liquid suspensions and formulations

• Chemical processing and particle size reduction

• Food and beverage ingredient processing

• Paint, coating, and pigment dispersion

• Nanomaterial preparation and processing

• Cosmetic and personal care product manufacturing

• Advanced material synthesis and treatment

Performance Excellence

The DPP High Shear Mixer achieves outstanding results through its progressive processing approach:

• Particle Size Reduction: Down to micrometer and nanometer scales

• Superior Homogeneity: Excellent consistency and stability in final products

• Rapid Processing: Significant reduction in production cycle times

• Energy Efficiency: Optimized power consumption throughout all processing stages

• Consistent Results: Reproducible performance across all production batches

Why Choose DPP High Shear Mixer?

• Advanced Technology: Innovative multi-stage processing system

• Proven Performance: Demonstrated results in demanding applications

• Quality Construction: Premium materials ensure long-term reliability

• Technical Support: Comprehensive service and maintenance programs

• Custom Solutions: Tailored to specific process requirements

• Global Standards Compliance: Meets international quality and safety regulations

For manufacturers seeking superior solid particle processing capabilities, the DPP High Shear Mixer provides an optimal solution that combines advanced mechanical action with precision engineering. Experience the next generation of High Shear Mixer technology with the DPP series – where innovation meets excellence in particle size reduction, mixing efficiency, and processing performance.
